spring-source-1

我们知道spring mvc是通过ContextLoaderListener来监听web容器启动并在web上下文初始化，那spring mvc的ContextLoaderListener是怎么做到的呢
我带着这个疑问来看下spring源码

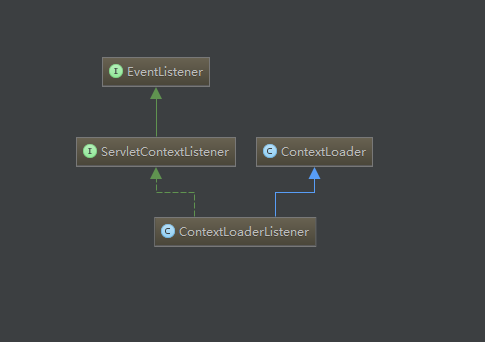

ContextLoadListener继承了ContextLoader,并实现了ServletContextListener

ServletContextListener是Servlet提供的接口类,监听了Web应用的生命周期,它提供了2个方法

//在所有filters和servlet初始化前，ServletContextListeners被
public void contextInitialized(ServletContextEvent sce);

//所有servlets和filters在调用本方法前被销毁
public void contextDestroyed(ServletContextEvent sce);

我们再来看看ContextLoaderListener在初始化的时候调用了ContextLoader类中的initWebApplicationContext方法
ContextLoader类在

/**
 * <p>Looks for a {@link #CONTEXT_CLASS_PARAM "contextClass"} parameter
 * at the {@code web.xml} context-param level to specify the context
 * class type, falling back to the default of
 * {@link org.springframework.web.context.support.XmlWebApplicationContext}
 * if not found. With the default ContextLoader implementation, any context class
 * specified needs to implement the ConfigurableWebApplicationContext interface.
 *
 * CONTEXT_CLASS_PARAM
 * 在配置文件中找不到这个变量，那么将使用默认的类型,org.springframework.web.context.support.XmlWebApplicationContext。
 * 如果使用默认的ContextLoader实现类，任何一个ContextLoader都需要实现ConfigurableWebApplicationContext接口

 * <p>Processes a {@link #CONFIG_LOCATION_PARAM "contextConfigLocation"}
 * context-param and passes its value to the context instance, parsing it into
 * potentially multiple file paths which can be separated by any number of
 * commas and spaces, e.g. "WEB-INF/applicationContext1.xml,
 * WEB-INF/applicationContext2.xml". Ant-style path patterns are supported as well,
 * e.g. "WEB-INF/*Context.xml,WEB-INF/spring*.xml" or "WEB-INF/&#42;&#42;/*Context.xml".
 * If not explicitly specified, the context implementation is supposed to use a
 * default location (with XmlWebApplicationContext: "/WEB-INF/applicationContext.xml").
 *
 * <p>Note: In case of multiple config locations, later bean definitions will
 * override ones defined in previously loaded files, at least when using one of
 * Spring's default ApplicationContext implementations. This can be leveraged
 * to deliberately override certain bean definitions via an extra XML file.
 * 如果配置了多个文件路径，后面的配置文件将复写前面的配置文件中的内容
 */
public class ContextLoader {

	/**
	 * web应用上下文id
	 */
	public static final String CONTEXT_ID_PARAM = "contextId";

	/**
	 * 上下文配置路径
	 * @see org.springframework.web.context.support.XmlWebApplicationContext#DEFAULT_CONFIG_LOCATION
	 */
	public static final String CONFIG_LOCATION_PARAM = "contextConfigLocation";

	/**
	 * WebApplicationContext的实现类
	 * @see #determineContextClass(ServletContext)
	 */
	public static final String CONTEXT_CLASS_PARAM = "contextClass";

	/**
	 * 上下文相关全局特性
	 * @see #customizeContext(ServletContext, ConfigurableWebApplicationContext)
	 */
	public static final String CONTEXT_INITIALIZER_CLASSES_PARAM = "contextInitializerClasses";

	/**
	 * 上下文相关全局特性
	 * @see #customizeContext(ServletContext, ConfigurableWebApplicationContext)
	 */
	public static final String GLOBAL_INITIALIZER_CLASSES_PARAM = "globalInitializerClasses";

	/**
	 * BeanFactory工厂路径
	 */
	public static final String LOCATOR_FACTORY_SELECTOR_PARAM = "locatorFactorySelector";

	/**
	 * Optional servlet context parameter (i.e., "{@code parentContextKey}")
	 * used only when obtaining a parent context using the default implementation
	 * of {@link #loadParentContext(ServletContext servletContext)}.
	 * Specifies the 'factoryKey' used in the
	 * {@link BeanFactoryLocator#useBeanFactory(String factoryKey)} method call,
	 * obtaining the parent application context from the BeanFactoryLocator instance.
	 * <p>Supplying this "parentContextKey" parameter is sufficient when relying
	 * on the default {@code classpath*:beanRefContext.xml} selector for
	 * candidate factory references.
	 */
	public static final String LOCATOR_FACTORY_KEY_PARAM = "parentContextKey";

	/**
	 * Any number of these characters are considered delimiters between
	 * multiple values in a single init-param String value.
	 */
	private static final String INIT_PARAM_DELIMITERS = ",; \t\n";

	/**
	 * Name of the class path resource (relative to the ContextLoader class)
	 * that defines ContextLoader's default strategy names.
	 */
	private static final String DEFAULT_STRATEGIES_PATH = "ContextLoader.properties";


	private static final Properties defaultStrategies;

	static {
		// Load default strategy implementations from properties file.
		// This is currently strictly internal and not meant to be customized
		// by application developers.
		try {
			ClassPathResource resource = new ClassPathResource(DEFAULT_STRATEGIES_PATH, ContextLoader.class);
			defaultStrategies = PropertiesLoaderUtils.loadProperties(resource);
		}
		catch (IOException ex) {
			throw new IllegalStateException("Could not load 'ContextLoader.properties': " + ex.getMessage());
		}
	}


	/**
	 * Map from (thread context) ClassLoader to corresponding 'current' WebApplicationContext.
	 */
	private static final Map<ClassLoader, WebApplicationContext> currentContextPerThread =
			new ConcurrentHashMap<ClassLoader, WebApplicationContext>(1);

	/**
	 * The 'current' WebApplicationContext, if the ContextLoader class is
	 * deployed in the web app ClassLoader itself.
	 */
	private static volatile WebApplicationContext currentContext;


	/**
	 * The root WebApplicationContext instance that this loader manages.
	 */
	private WebApplicationContext context;

	/**
	 * Holds BeanFactoryReference when loading parent factory via
	 * ContextSingletonBeanFactoryLocator.
	 */
	private BeanFactoryReference parentContextRef;

	/** Actual ApplicationContextInitializer instances to apply to the context */
	private final List<ApplicationContextInitializer<ConfigurableApplicationContext>> contextInitializers =
			new ArrayList<ApplicationContextInitializer<ConfigurableApplicationContext>>();


	/**
	 * Create a new {@code ContextLoader} that will create a web application context
	 * based on the "contextClass" and "contextConfigLocation" servlet context-params.
	 * See class-level documentation for details on default values for each.
	 * <p>This constructor is typically used when declaring the {@code
	 * ContextLoaderListener} subclass as a {@code <listener>} within {@code web.xml}, as
	 * a no-arg constructor is required.
	 * <p>The created application context will be registered into the ServletContext under
	 * the attribute name {@link WebApplicationContext#ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE}
	 * and subclasses are free to call the {@link #closeWebApplicationContext} method on
	 * container shutdown to close the application context.
	 * @see #ContextLoader(WebApplicationContext)
	 * @see #initWebApplicationContext(ServletContext)
	 * @see #closeWebApplicationContext(ServletContext)
	 */
	public ContextLoader() {
	}

	/**
	 * Create a new {@code ContextLoader} with the given application context. This
	 * constructor is useful in Servlet 3.0+ environments where instance-based
	 * registration of listeners is possible through the {@link ServletContext#addListener}
	 * API.
	 * <p>The context may or may not yet be {@linkplain
	 * ConfigurableApplicationContext#refresh() refreshed}. If it (a) is an implementation
	 * of {@link ConfigurableWebApplicationContext} and (b) has <strong>not</strong>
	 * already been refreshed (the recommended approach), then the following will occur:
	 * <ul>
	 * <li>If the given context has not already been assigned an {@linkplain
	 * ConfigurableApplicationContext#setId id}, one will be assigned to it</li>
	 * <li>{@code ServletContext} and {@code ServletConfig} objects will be delegated to
	 * the application context</li>
	 * <li>{@link #customizeContext} will be called</li>
	 * <li>Any {@link ApplicationContextInitializer}s specified through the
	 * "contextInitializerClasses" init-param will be applied.</li>
	 * <li>{@link ConfigurableApplicationContext#refresh refresh()} will be called</li>
	 * </ul>
	 * If the context has already been refreshed or does not implement
	 * {@code ConfigurableWebApplicationContext}, none of the above will occur under the
	 * assumption that the user has performed these actions (or not) per his or her
	 * specific needs.
	 * <p>See {@link org.springframework.web.WebApplicationInitializer} for usage examples.
	 * <p>In any case, the given application context will be registered into the
	 * ServletContext under the attribute name {@link
	 * WebApplicationContext#ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE} and subclasses are
	 * free to call the {@link #closeWebApplicationContext} method on container shutdown
	 * to close the application context.
	 * @param context the application context to manage
	 * @see #initWebApplicationContext(ServletContext)
	 * @see #closeWebApplicationContext(ServletContext)
	 */
	public ContextLoader(WebApplicationContext context) {
		this.context = context;
	}


	/**
	 * Specify which {@link ApplicationContextInitializer} instances should be used
	 * to initialize the application context used by this {@code ContextLoader}.
	 * @since 4.2
	 * @see #configureAndRefreshWebApplicationContext
	 * @see #customizeContext
	 */
	@SuppressWarnings("unchecked")
	public void setContextInitializers(ApplicationContextInitializer<?>... initializers) {
		if (initializers != null) {
			for (ApplicationContextInitializer<?> initializer : initializers) {
				this.contextInitializers.add((ApplicationContextInitializer<ConfigurableApplicationContext>) initializer);
			}
		}
	}


	/**
	 * 初始化spring上下文
	 * @param servletContext current servlet context
	 * @return the new WebApplicationContext
	 * @see #ContextLoader(WebApplicationContext)
	 * @see #CONTEXT_CLASS_PARAM
	 * @see #CONFIG_LOCATION_PARAM
	 */
	public WebApplicationContext initWebApplicationContext(ServletContext servletContext) {
		if (servletContext.getAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE) != null) {
			throw new IllegalStateException(
					"Cannot initialize context because there is already a root application context present - " +
					"check whether you have multiple ContextLoader* definitions in your web.xml!");
		}

		Log logger = LogFactory.getLog(ContextLoader.class);
		servletContext.log("Initializing Spring root WebApplicationContext");
		if (logger.isInfoEnabled()) {
			logger.info("Root WebApplicationContext: initialization started");
		}
		long startTime = System.currentTimeMillis();

		try {
			// 创建WebApplicationContext实现类
			if (this.context == null) {
				this.context = createWebApplicationContext(servletContext);
			}
			if (this.context instanceof ConfigurableWebApplicationContext) {
				ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) this.context;
				//AtomicBoolean来保证原子性操作
				if (!cwac.isActive()) {
					// The context has not yet been refreshed -> provide services such as
					// setting the parent context, setting the application context id, etc
					if (cwac.getParent() == null) {
						// The context instance was injected without an explicit parent ->
						// determine parent for root web application context, if any.
						ApplicationContext parent = loadParentContext(servletContext);
						cwac.setParent(parent);
					}
					//ApplicationContext初始化,配置刷新上下文
					configureAndRefreshWebApplicationContext(cwac, servletContext);
				}
			}
			//WebApplicationContext放入servlet全局变量中
			servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, this.context);

			ClassLoader ccl = Thread.currentThread().getContextClassLoader();
			if (ccl == ContextLoader.class.getClassLoader()) {
				currentContext = this.context;
			}
			else if (ccl != null) {
				currentContextPerThread.put(ccl, this.context);
			}

			if (logger.isDebugEnabled()) {
				logger.debug("Published root WebApplicationContext as ServletContext attribute with name [" +
						WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE + "]");
			}
			if (logger.isInfoEnabled()) {
				long elapsedTime = System.currentTimeMillis() - startTime;
				logger.info("Root WebApplicationContext: initialization completed in " + elapsedTime + " ms");
			}

			return this.context;
		}
		catch (RuntimeException ex) {
			logger.error("Context initialization failed", ex);
			servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, ex);
			throw ex;
		}
		catch (Error err) {
			logger.error("Context initialization failed", err);
			servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, err);
			throw err;
		}
	}

	/**
     * 创建WebApplicationContext Bean
	 * @param sc current servlet context
	 * @return the root WebApplicationContext
	 *
	 * @see ConfigurableWebApplicationContext
	 */
	protected WebApplicationContext createWebApplicationContext(ServletContext sc) {
		Class<?> contextClass = determineContextClass(sc);
		if (!ConfigurableWebApplicationContext.class.isAssignableFrom(contextClass)) {
			throw new ApplicationContextException("Custom context class [" + contextClass.getName() +
					"] is not of type [" + ConfigurableWebApplicationContext.class.getName() + "]");
		}
		return (ConfigurableWebApplicationContext) BeanUtils.instantiateClass(contextClass);
	}

	/**
	 * 返回WebApplicationContext的实现类
	 * 默认是org.springframework.web.context.support.XmlWebApplicationContext
	 * @param servletContext current servlet context
	 * @return the WebApplicationContext implementation class to use
	 * @see #CONTEXT_CLASS_PARAM
	 * @see org.springframework.web.context.support.XmlWebApplicationContext
	 */
	protected Class<?> determineContextClass(ServletContext servletContext) {
		String contextClassName = servletContext.getInitParameter(CONTEXT_CLASS_PARAM);
		if (contextClassName != null) {
			try {
				return ClassUtils.forName(contextClassName, ClassUtils.getDefaultClassLoader());
			}
			catch (ClassNotFoundException ex) {
				throw new ApplicationContextException(
						"Failed to load custom context class [" + contextClassName + "]", ex);
			}
		}
		else {
			contextClassName = defaultStrategies.getProperty(WebApplicationContext.class.getName());
			try {
				return ClassUtils.forName(contextClassName, ContextLoader.class.getClassLoader());
			}
			catch (ClassNotFoundException ex) {
				throw new ApplicationContextException(
						"Failed to load default context class [" + contextClassName + "]", ex);
			}
		}
	}

	protected void configureAndRefreshWebApplicationContext(ConfigurableWebApplicationContext wac, ServletContext sc) {
		if (ObjectUtils.identityToString(wac).equals(wac.getId())) {
			// The application context id is still set to its original default value
			// -> assign a more useful id based on available information
			String idParam = sc.getInitParameter(CONTEXT_ID_PARAM);
			if (idParam != null) {
				wac.setId(idParam);
			}
			else {
				// Generate default id...
				wac.setId(ConfigurableWebApplicationContext.APPLICATION_CONTEXT_ID_PREFIX +
						ObjectUtils.getDisplayString(sc.getContextPath()));
			}
		}

		wac.setServletContext(sc);
		String configLocationParam = sc.getInitParameter(CONFIG_LOCATION_PARAM);
		if (configLocationParam != null) {
			wac.setConfigLocation(configLocationParam);
		}

		// The wac environment's #initPropertySources will be called in any case when the context
		// is refreshed; do it eagerly here to ensure servlet property sources are in place for
		// use in any post-processing or initialization that occurs below prior to #refresh
		ConfigurableEnvironment env = wac.getEnvironment();
		if (env instanceof ConfigurableWebEnvironment) {
			((ConfigurableWebEnvironment) env).initPropertySources(sc, null);
		}

		customizeContext(sc, wac);
		//刷新动作,加载xml,bean
		wac.refresh();
	}

	/**
	 * Customize the {@link ConfigurableWebApplicationContext} created by this
	 * ContextLoader after config locations have been supplied to the context
	 * but before the context is <em>refreshed</em>.
	 * <p>The default implementation {@linkplain #determineContextInitializerClasses(ServletContext)
	 * determines} what (if any) context initializer classes have been specified through
	 * {@linkplain #CONTEXT_INITIALIZER_CLASSES_PARAM context init parameters} and
	 * {@linkplain ApplicationContextInitializer#initialize invokes each} with the
	 * given web application context.
	 * <p>Any {@code ApplicationContextInitializers} implementing
	 * {@link org.springframework.core.Ordered Ordered} or marked with @{@link
	 * org.springframework.core.annotation.Order Order} will be sorted appropriately.
	 * @param sc the current servlet context
	 * @param wac the newly created application context
	 * @see #CONTEXT_INITIALIZER_CLASSES_PARAM
	 * @see ApplicationContextInitializer#initialize(ConfigurableApplicationContext)
	 */
	protected void customizeContext(ServletContext sc, ConfigurableWebApplicationContext wac) {
		List<Class<ApplicationContextInitializer<ConfigurableApplicationContext>>> initializerClasses =
				determineContextInitializerClasses(sc);

		for (Class<ApplicationContextInitializer<ConfigurableApplicationContext>> initializerClass : initializerClasses) {
			Class<?> initializerContextClass =
					GenericTypeResolver.resolveTypeArgument(initializerClass, ApplicationContextInitializer.class);
			if (initializerContextClass != null) {
				Assert.isAssignable(initializerContextClass, wac.getClass(), String.format(
						"Could not add context initializer [%s] since its generic parameter [%s] " +
						"is not assignable from the type of application context used by this " +
						"context loader [%s]: ", initializerClass.getName(), initializerContextClass.getName(),
						wac.getClass().getName()));
			}
			this.contextInitializers.add(BeanUtils.instantiateClass(initializerClass));
		}

		AnnotationAwareOrderComparator.sort(this.contextInitializers);
		for (ApplicationContextInitializer<ConfigurableApplicationContext> initializer : this.contextInitializers) {
			initializer.initialize(wac);
		}
	}

	/**
	 * Return the {@link ApplicationContextInitializer} implementation classes to use
	 * if any have been specified by {@link #CONTEXT_INITIALIZER_CLASSES_PARAM}.
	 * @param servletContext current servlet context
	 * @see #CONTEXT_INITIALIZER_CLASSES_PARAM
	 */
	protected List<Class<ApplicationContextInitializer<ConfigurableApplicationContext>>>
			determineContextInitializerClasses(ServletContext servletContext) {

		List<Class<ApplicationContextInitializer<ConfigurableApplicationContext>>> classes =
				new ArrayList<Class<ApplicationContextInitializer<ConfigurableApplicationContext>>>();

		String globalClassNames = servletContext.getInitParameter(GLOBAL_INITIALIZER_CLASSES_PARAM);
		if (globalClassNames != null) {
			for (String className : StringUtils.tokenizeToStringArray(globalClassNames, INIT_PARAM_DELIMITERS)) {
				classes.add(loadInitializerClass(className));
			}
		}

		String localClassNames = servletContext.getInitParameter(CONTEXT_INITIALIZER_CLASSES_PARAM);
		if (localClassNames != null) {
			for (String className : StringUtils.tokenizeToStringArray(localClassNames, INIT_PARAM_DELIMITERS)) {
				classes.add(loadInitializerClass(className));
			}
		}

		return classes;
	}

	@SuppressWarnings("unchecked")
	private Class<ApplicationContextInitializer<ConfigurableApplicationContext>> loadInitializerClass(String className) {
		try {
			Class<?> clazz = ClassUtils.forName(className, ClassUtils.getDefaultClassLoader());
			Assert.isAssignable(ApplicationContextInitializer.class, clazz);
			return (Class<ApplicationContextInitializer<ConfigurableApplicationContext>>) clazz;
		}
		catch (ClassNotFoundException ex) {
			throw new ApplicationContextException("Failed to load context initializer class [" + className + "]", ex);
		}
	}

	/**
	 * Template method with default implementation (which may be overridden by a
	 * subclass), to load or obtain an ApplicationContext instance which will be
	 * used as the parent context of the root WebApplicationContext. If the
	 * return value from the method is null, no parent context is set.
	 * <p>The main reason to load a parent context here is to allow multiple root
	 * web application contexts to all be children of a shared EAR context, or
	 * alternately to also share the same parent context that is visible to
	 * EJBs. For pure web applications, there is usually no need to worry about
	 * having a parent context to the root web application context.
	 * <p>The default implementation uses
	 * {@link org.springframework.context.access.ContextSingletonBeanFactoryLocator},
	 * configured via {@link #LOCATOR_FACTORY_SELECTOR_PARAM} and
	 * {@link #LOCATOR_FACTORY_KEY_PARAM}, to load a parent context
	 * which will be shared by all other users of ContextsingletonBeanFactoryLocator
	 * which also use the same configuration parameters.
	 * @param servletContext current servlet context
	 * @return the parent application context, or {@code null} if none
	 * @see org.springframework.context.access.ContextSingletonBeanFactoryLocator
	 */
	protected ApplicationContext loadParentContext(ServletContext servletContext) {
		ApplicationContext parentContext = null;
		String locatorFactorySelector = servletContext.getInitParameter(LOCATOR_FACTORY_SELECTOR_PARAM);
		String parentContextKey = servletContext.getInitParameter(LOCATOR_FACTORY_KEY_PARAM);

		if (parentContextKey != null) {
			// locatorFactorySelector may be null, indicating the default "classpath*:beanRefContext.xml"
			BeanFactoryLocator locator = ContextSingletonBeanFactoryLocator.getInstance(locatorFactorySelector);
			Log logger = LogFactory.getLog(ContextLoader.class);
			if (logger.isDebugEnabled()) {
				logger.debug("Getting parent context definition: using parent context key of '" +
						parentContextKey + "' with BeanFactoryLocator");
			}
			this.parentContextRef = locator.useBeanFactory(parentContextKey);
			parentContext = (ApplicationContext) this.parentContextRef.getFactory();
		}

		return parentContext;
	}

	/**
	 * Close Spring's web application context for the given servlet context. If
	 * the default {@link #loadParentContext(ServletContext)} implementation,
	 * which uses ContextSingletonBeanFactoryLocator, has loaded any shared
	 * parent context, release one reference to that shared parent context.
	 * <p>If overriding {@link #loadParentContext(ServletContext)}, you may have
	 * to override this method as well.
	 * @param servletContext the ServletContext that the WebApplicationContext runs in
	 */
	public void closeWebApplicationContext(ServletContext servletContext) {
		servletContext.log("Closing Spring root WebApplicationContext");
		try {
			if (this.context instanceof ConfigurableWebApplicationContext) {
				((ConfigurableWebApplicationContext) this.context).close();
			}
		}
		finally {
			ClassLoader ccl = Thread.currentThread().getContextClassLoader();
			if (ccl == ContextLoader.class.getClassLoader()) {
				currentContext = null;
			}
			else if (ccl != null) {
				currentContextPerThread.remove(ccl);
			}
			servletContext.removeAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE);
			if (this.parentContextRef != null) {
				this.parentContextRef.release();
			}
		}
	}


	/**
	 * Obtain the Spring root web application context for the current thread
	 * (i.e. for the current thread's context ClassLoader, which needs to be
	 * the web application's ClassLoader).
	 * @return the current root web application context, or {@code null}
	 * if none found
	 * @see org.springframework.web.context.support.SpringBeanAutowiringSupport
	 */
	public static WebApplicationContext getCurrentWebApplicationContext() {
		ClassLoader ccl = Thread.currentThread().getContextClassLoader();
		if (ccl != null) {
			WebApplicationContext ccpt = currentContextPerThread.get(ccl);
			if (ccpt != null) {
				return ccpt;
			}
		}
		return currentContext;
	}

}
